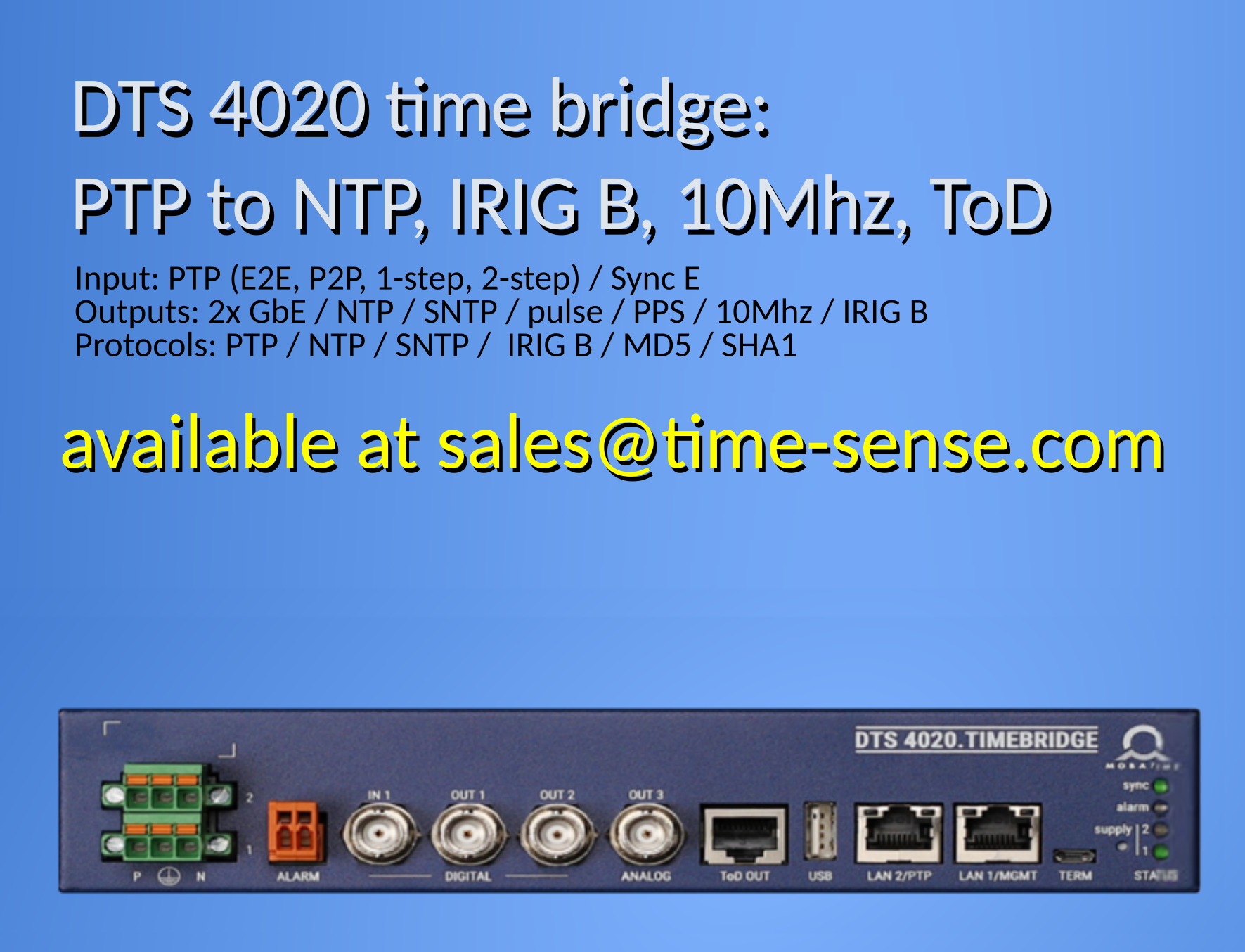

FACT SHEET:

Synchronization Outputs:

• 1 x Analog output (BNC), 50 Ohms: IRIG-B modulated or 10 MHz sinus

• 2 x Digital outputs (BNC): Precision pulse, frequency, or IRIG-B unmodulated

• 2 x Ethernet LAN 100/1000: RJ45

• 1 x ToD (Time of Day) (RJ45 spec.), serial interface (CCSA) + 1 PPS

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps)

• PTP Slave (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2, IPv4/IPv6)

• NTP requests: >10,000 req/sec per device

Operation:

• Serial (RS 232, PC terminal), via LAN (SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

Synchronization Input:

• PTP Slave (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2, IPv4/IPv6)

Accuracy (free run):

• < +/- 1 ms/day (< 0.01 pps)

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• TCXO

Case:

• Metallic rack mounting, option: rack mounting brackets or DIN rail mounting

Dimensions:

• Width x Height x Depth in mm: 221 x 43 x 252 mm

Power Supply:

• Single: 1 x 24 - 60 VDC, < 30 VA

•


FACT SHEET:

Inputs:

• 2 x IRIG-B 1xx (modulated) (Line 1 and Line 2)

• 2 x IRIG-B 0xx (digital, unmodulated) (Line 1 and Line 2)

Outputs Line 1:

• 4 x IRIG-B 1xx (AF, modulated)

• 4 x IRIG-B 0xx (digital, unmodulated)

Outputs Line 2:

• 4 x IRIG-B 1xx (AF, modulated)

• 4 x IRIG-B 0xx (digital, unmodulated)

Configuration:

• 6 x DIP switches for configuration on rear side

Control:

• LEDs: power, alarm for each input and output groups

Alarm:

• 1 relay with break and close contact

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Power Supply:

• 20-65 VDC, < 15 W

FACT SHEET:

Synchronization Outputs:

• 1 x E1 / 2.048 MHz output, G811, G812, G813 compatible, according to oscillator option

• 1 x 10 MHz (BNC connector)

• 1 x Precision pulse/frequency output on BNC, CL, and RS 422

• 2 x Serial output (RS 232/422/485), programmable by script file

• 1 x IRIG-B, AFNOR output

• 1 x DCF current loop output

• 3 x Ethernet LAN 100/1000, RJ45

• 1 x SFP, for additional Ethernet or fiber optic LAN port or redundant operation

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps)

• PTP Grandmaster (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2)

• Sync-E (Synchronous Ethernet)

• NTP requests: >10,000 req/sec per device

Operation:

• Serial (RS 232, PC terminal), via LAN (SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• GPS RF, connector: N (f)

Accuracy (free run):

• Depending on quartz oscillator. Check leaflet or manual.

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• OCXO (G813 compatible)

• DOCXO (G812 compatible)

• Rubidium (G811 compatible)

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Redundant Power Supply:

• 90-240 VAC, 50/60 Hz, 2 x 22-29 VDC, < 30 VA

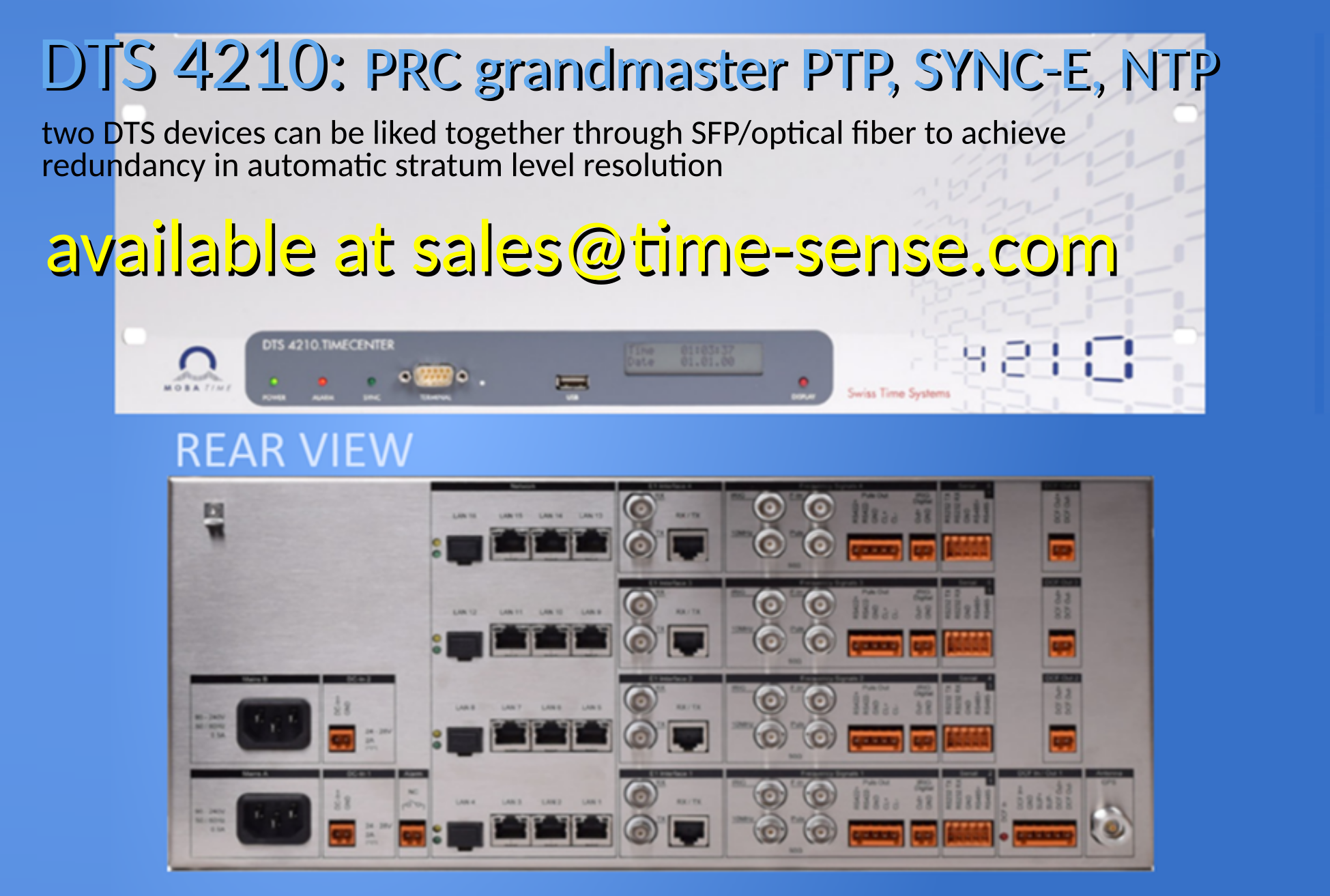

FACT SHEET:

Synchronization Outputs:

• 4 x E1 / 2.048 MHz output, G811, G812, G813 compatible, according to oscillator option

• 4 x 10 MHz (BNC connector)

• 1 x Precision pulse/frequency output on BNC, CL, and RS 422

• 8 x Serial output (RS 232/422/485), programmable by script file

• 4 x IRIG-B, AFNOR output

• 4 x DCF current loop output

• 12 x Ethernet LAN 100/1000, RJ45

• 4 x SFP, for additional Ethernet or fiber optic LAN port or redundant operation

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps)

• PTP IEEE1588 Grandmaster (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2)

• Sync-E (Synchronous Ethernet)

• NTP requests: > 5,000 req/sec per port

Operation:

• Serial (RS 232, PC terminal), via LAN (SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• GPS RF, connector: N (f)

Accuracy (free run):

• Depending on quartz oscillator. Check leaflet or manual.

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• Rubidium (G811 compatible)

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 176 (6 HU) x 483 mm (19")

Redundant Power Supply:

• 2 x 90-240 VAC, 50/60 Hz, 2 x 22-29 VDC, < 40 VA

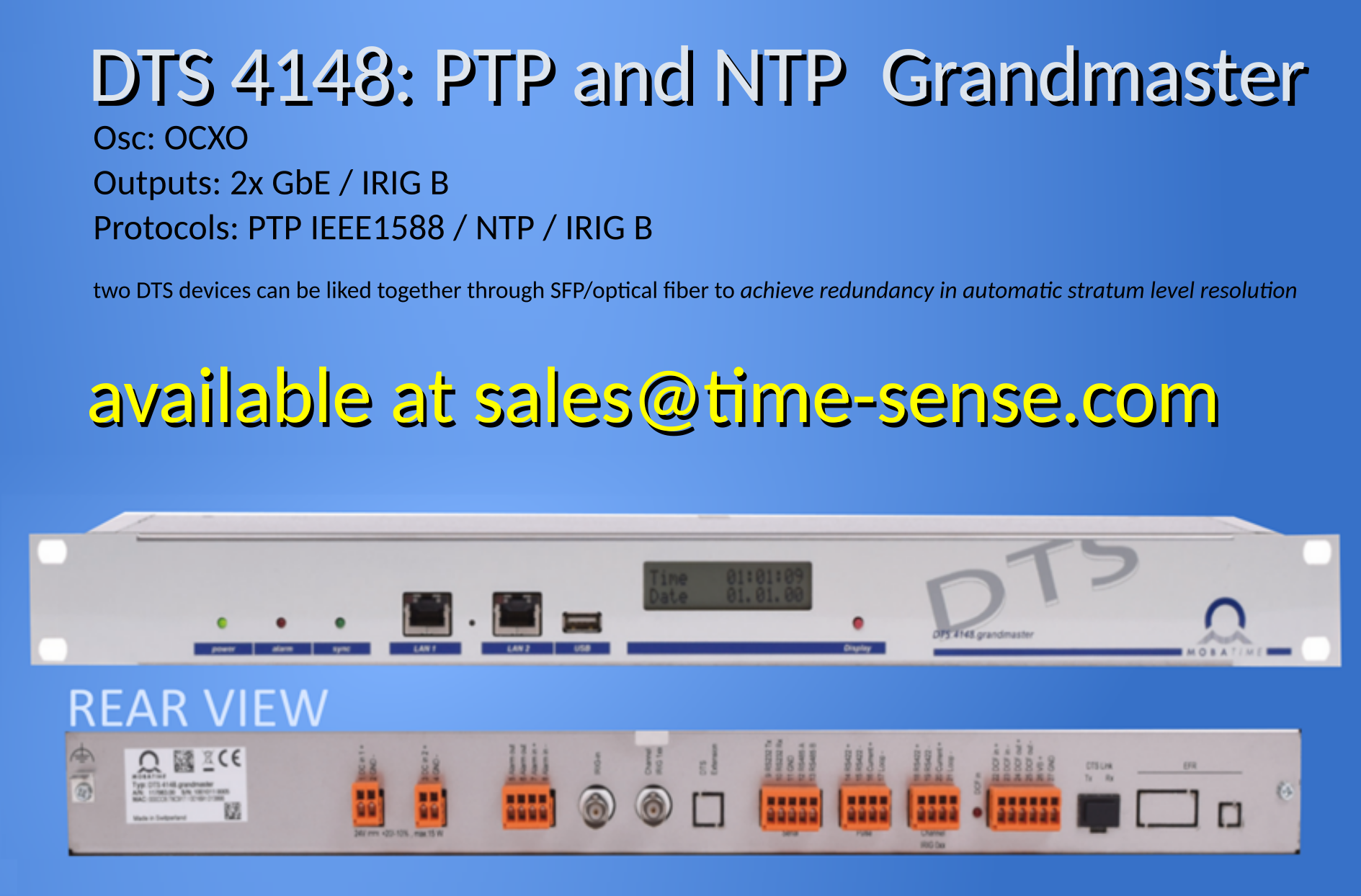

FACT SHEET:

Synchronization Outputs:

• 1 x IRIG-B, AFNOR output

• 1 x Serial output (RS 232/422/485), programmable by script file

• 1 x DCF current loop output

• 1 x DCF, programmable impulses/frequencies on RS 422 or current loop

• 2 x Ethernet LAN 100/1000, RJ45

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps)

• PTP Grandmaster (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2)

• NTP requests: >1,500 req/sec on one port or shared over both ports

Operation:

• Via LAN (Telnet / SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• DCF, GPS 4500, AFNOR, IRIG-B (manual year set), NTP

Accuracy (free run):

• < +/-0.001 sec/day, at 20°C +/-5°C (measured over 24 h, after 12 h synchronization)

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• OCXO

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Redundant Power Supply:

• 2 x 22-29 VDC, < 15 VA

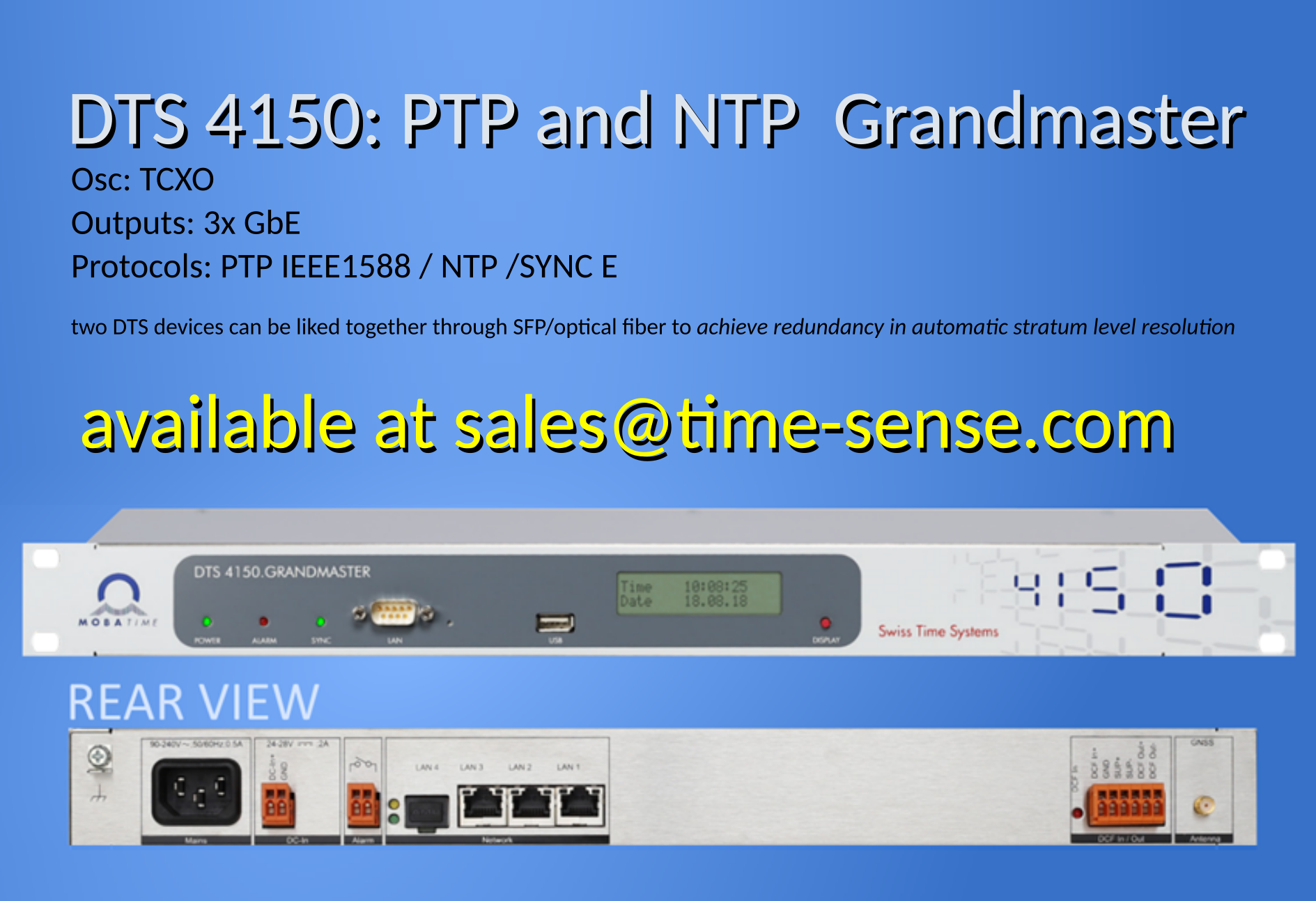

FACT SHEET:

Synchronization Outputs:

• 3 x Ethernet LAN 100/1000 MBit, RJ45

• 1 x DCF current loop output / PPS

• 1 x SFP, for additional Ethernet or fiber optic LAN port or redundant operation

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps)

• NTP requests: >10,000 req/sec

• PTP Grandmaster (E2E, P2P, 1-step, 2-step, Unicast, Multicast, Layer 2)

• SyncE master

• MD5 authentication for NTP

Operation:

• Serial (RS 232, PC terminal), via LAN (SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• GNSS RF for GPS, GLONASS, Beidou

• GPS 4500, DCF, PTP

Accuracy:

• Holdover: < +/-0.001 sec/day, at 20°C +/-5°C (measured over 24 h, after 24 h synchronization)

• GPS to internal: typically < +/- 50 ns

• GPS to NTP: < +/- 100 µs

• GPS to PTP: < +/- 250 ns

• GPS to DCF: < +/- 5 µs

Alarm:

• SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• TCXO GPS disciplined (GPSDO)

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Redundant Power Supply:

• 1 x 90-240 VAC, 50/60 Hz, 0.5 A

• 1 x 24-28 VDC, 2 A

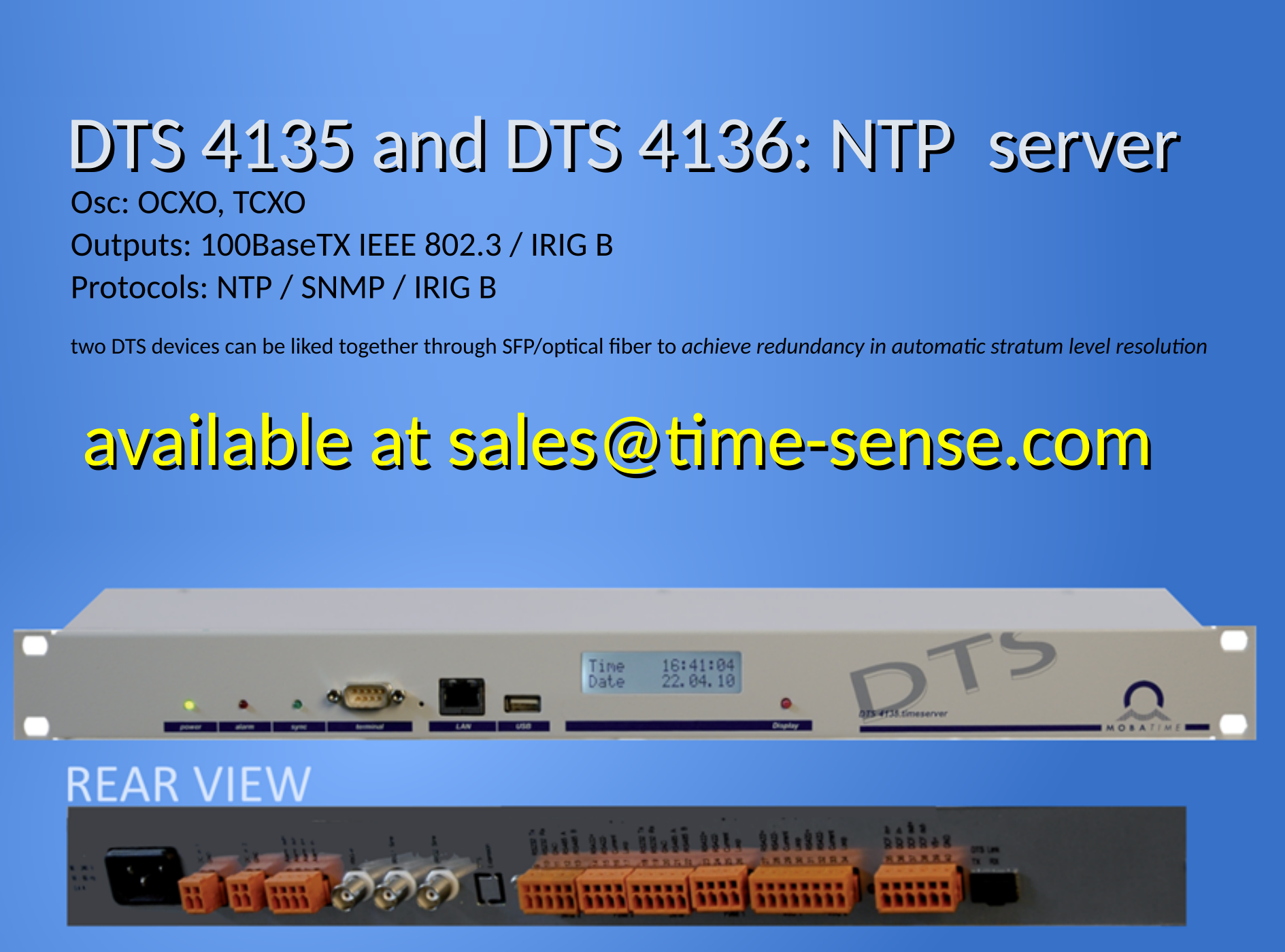

FACT SHEET:

Synchronization Outputs:

• 2 x IRIG-B output

• 2 x Serial output (RS 232/422/485), programmable by script file

• 1 x DCF current loop output

• 2 x DCF, programmable impulses/frequencies on RS 422 or current loop

• 1 x Ethernet LAN 10/100, RJ45

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put, and traps) with MD5 and DES

• NTP requests: > 1250 req/sec

Operation:

• Via LAN (Telnet / SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• DCF, GPS 4500, AFNOR, IRIG-B (manual year set), NTP

Accuracy (free run):

• DTS4135: < +/-0.01 sec/day, at 20°C +/-5°C (measured over 24 h, after 12 h synchronization)

• DTS 4136: < +/-0.001 sec/day, at 20°C +/-5°C (measured over 24 h, after 12 h synchronization)

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• TCXO (DTS4135)

• OCXO (DTS4136)

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Redundant Power Supply:

• 90-240 VAC, 2 x 22-29 VDC, < 15 VA

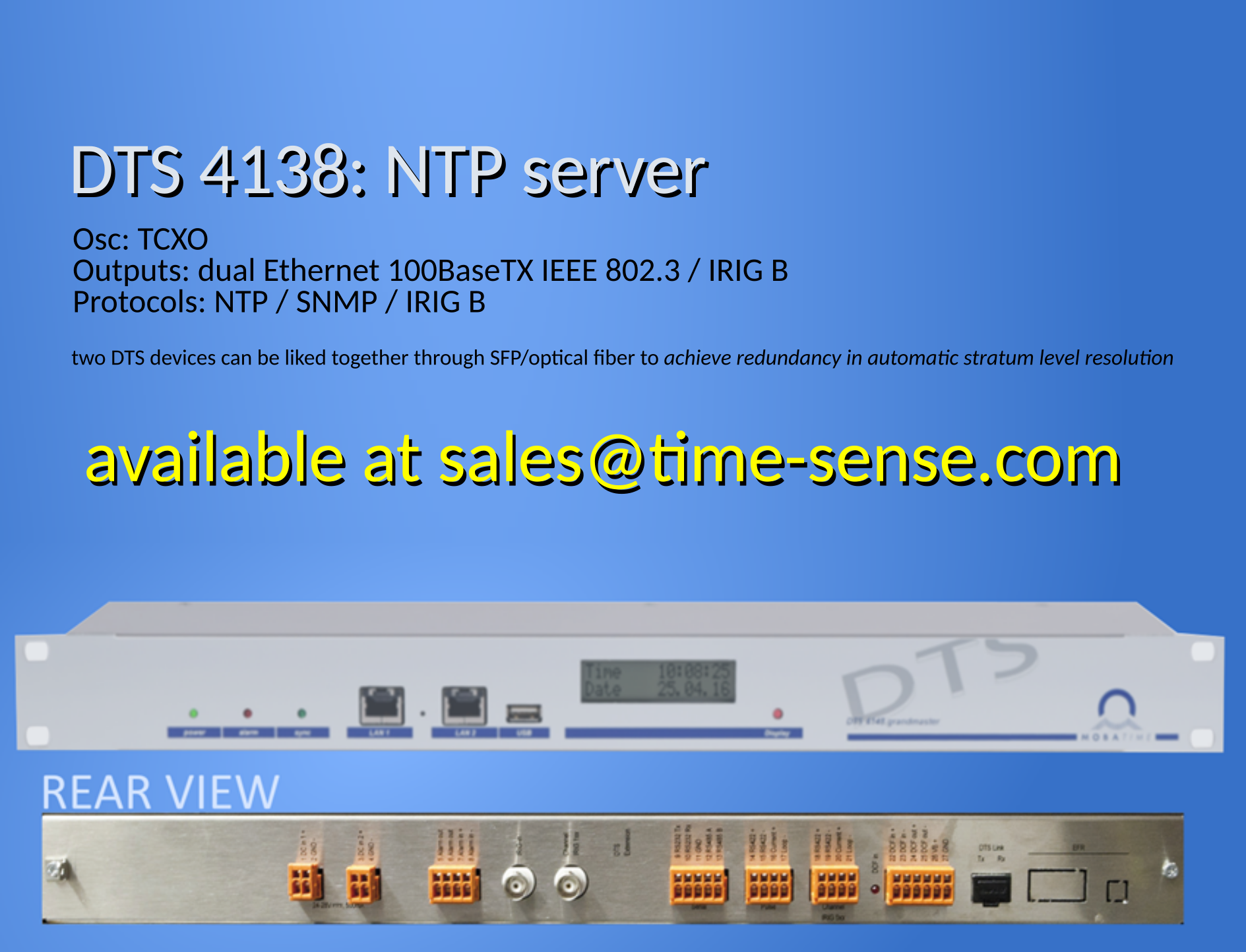

FACT SHEET:

Synchronization Outputs:

• 1 x IRIG-B output

• 1 x Serial output (RS 232/422/485), programmable by script file

• 1 x DCF current loop output

• 1 x DCF, programmable impulses/frequencies on RS 422 or current loop

• 2 x Ethernet LAN 100/1000, RJ45

LAN Services:

• NTP V4 server, SNMP V2c / V3 (Get, Put and traps)

• NTP requests: > 250 req/sec on one port or shared over both ports

Operation:

• Via LAN (Telnet / SSH) or SNMP (MOBA-NMS)

Control:

• LEDs: power, synchronization, alarm, communication on LAN

• Display for status and alarm signaling

• Push button for display change

Synchronization Input:

• DCF, GPS 4500, AFNOR, IRIG-B (manual year set), NTP

Accuracy (free run):

• < +/-0.01 sec/day, at 20°C +/-5°C (measured over 24 h, after 12 h synchronization)

Alarm:

• E-mail, SNMP notification, display, alarm LED, 1 relay with break contact

Oscillator:

• TCXO

Case:

• Metallic rack mounting, like IT devices

Dimensions:

• Height x Width in mm: 44 (1 HU) x 483 mm (19")

Redundant Power Supply:

• 2 x 22-29 VDC, < 15 VA

the MOBA-NMS application allows the configuration, monitoring an management of all network connected devices as :

• clocks display (analog and digital)

• master clocks

• time servers

• + various interfaces / bridges as NMI and NPR

The MOBA-NMS provides a convenient and ergonomic graphical interface
